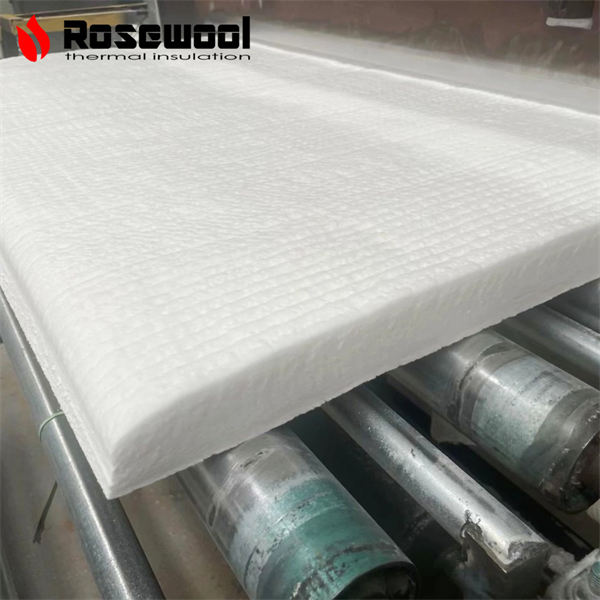

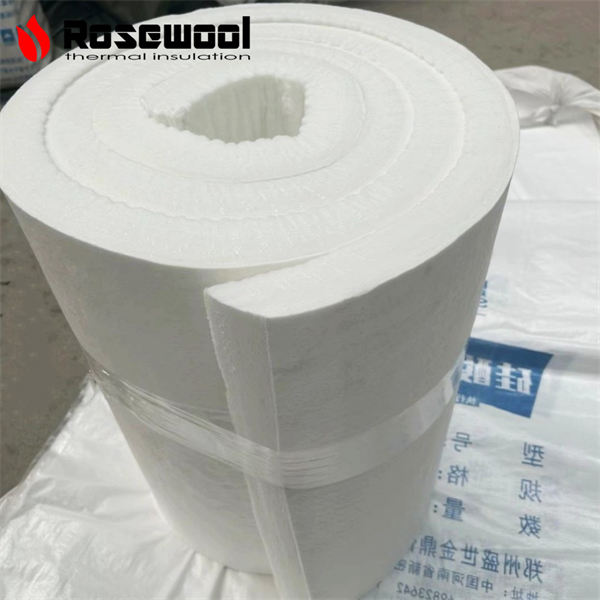

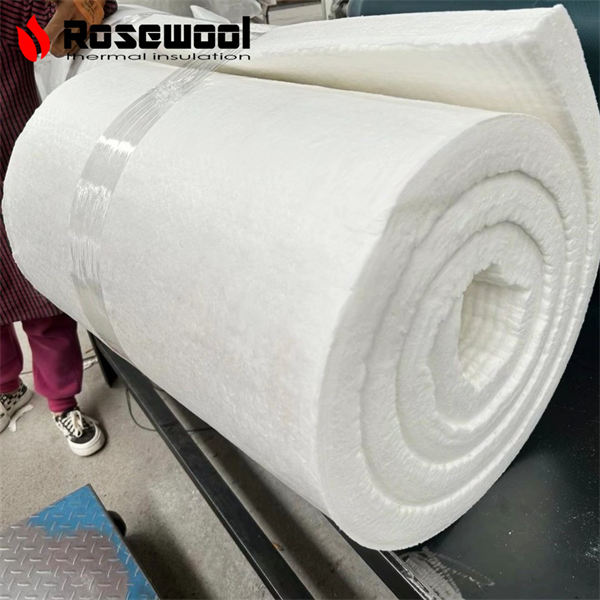

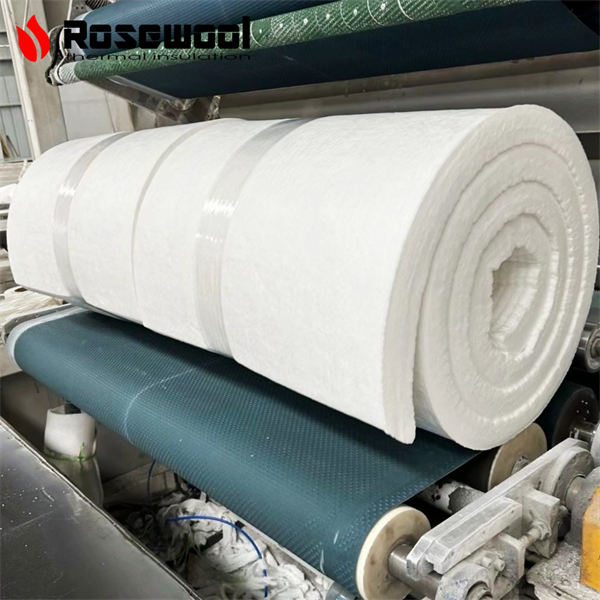

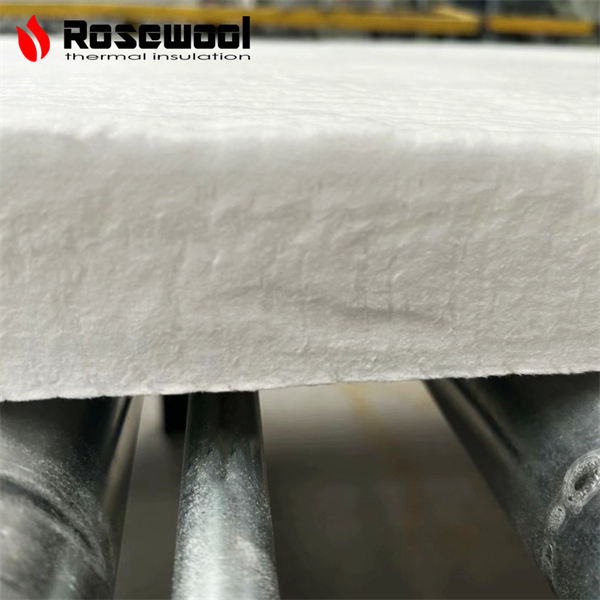

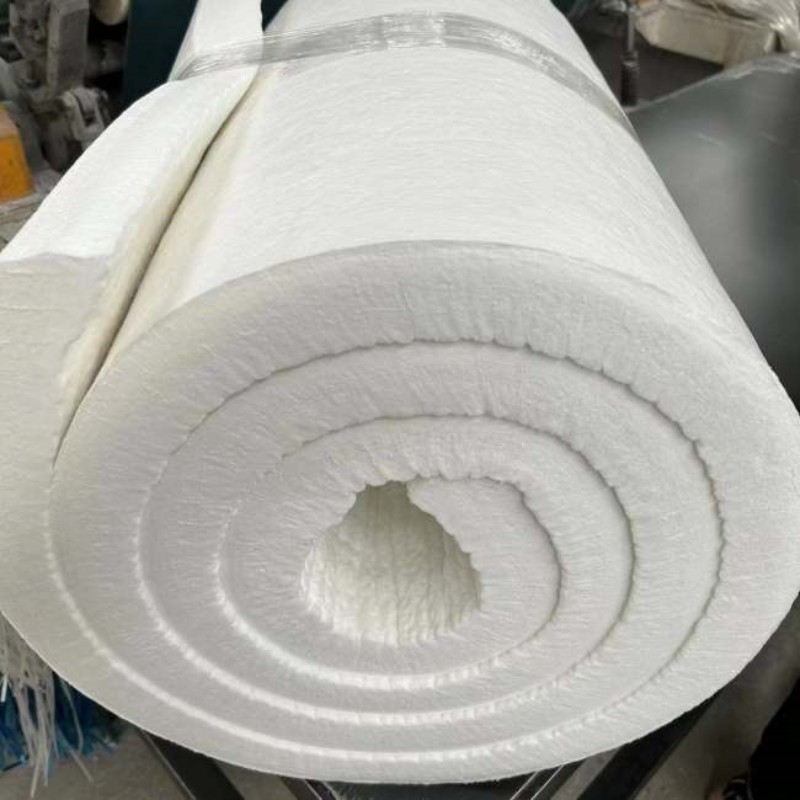

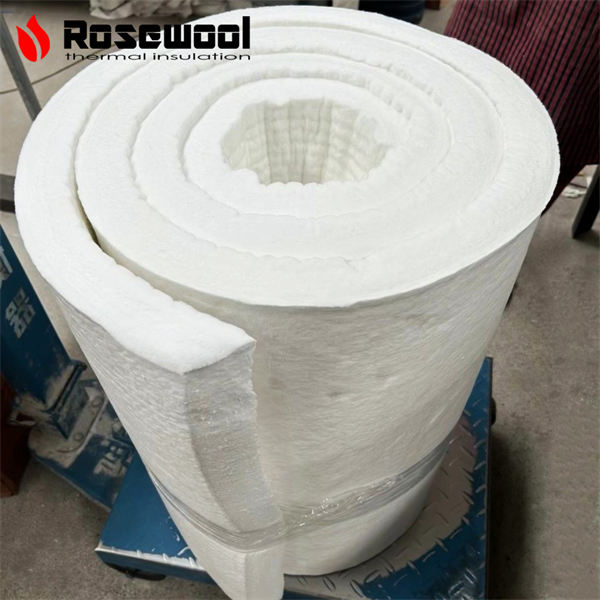

Rosewool Plus Blanket
Density: 96/128 kg/m³(6/8 lb/ft³)
Raw materials: Spuned Ceramic Fiber Bulk
Thickness: 10-50mm
Asbestos: 100% Non Asbestos
Function: Refractory & Insulation & Fireproof & Acoustic
Share With :
Introduction
Technical Data
Application
PDF Download
Rosewool Plus Blanket is a new thermal insulation blanket specially designed for steam turbines launched by ROSEWOOL to power plant customers. lt ismade from selected natural raw materials such as burnt stones, which aremelted at high temperature, blown into fiber, solidified and molded, cut androlled. lt has high temperature resistance, lt has the characteristics of goodstability, high chemical stability, low thermal conductivity, low heat capacity,and convenient cutting and construction. Compared with traditional alumi-num silicate needle punched blankets, it has lower slag ball content, highertensile strength and better rebound rate. lt is good, has no burrs in cutting, is easy to construct, has better thermal insulation effect and longer service life.

1. The thermal capacity and thermalconductivity are lower than similarproducts;

2. The fiber diameter is uniform, andthe slag ball content is lower in products with the same density;

3. Stable chemical performance with-out pulverization;

4. The same body density product hashigher tensile strength;

5. High flatness, cutting construction without burrs;

6.Good thermal shock resistance and long service life;



Product Item

1260 Blanket

Plus Blanket

National Standard

Classification Temperature("C)

1260



1360

1260

Color

Pure White

Pure White

White

Density(kg/m3)

96/128

96/128

96/128

Slag Ball Content (%)(Particle size greater than 0.212mm)

20

5

20

Thermal Conductivity(W/M.K)(Bulk density 128 Kg/m3)

0.153

(500°C)

0.135

(500°C)

0.156

(500°C)

Tensile Strength (Kpa)(Bulk density 128 Kg/m3)

34

110

21

 Rosewool Plus Blanket is a new thermal insulation blanket specially designed for steam turbines launched by ROSEWOOL to power plant customers.
