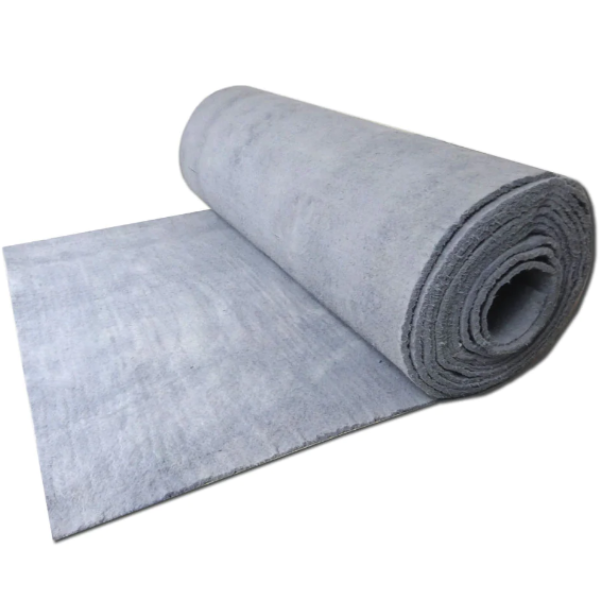

Nano Aerogel Insulation Blanket
Density: 180-200kg/m³
Raw materials: Aerogel And Fiber Materials
Thickness: 3mm/6mm/10mm
Working temperature: -200℃~650℃
Function: Thermal insulation
Share With :
Technical Data
Nano Aerogel Felt is composed of aerogel and fiber materials. It is the solid material with the lowest thermal conductivity in the world and its operating temperature range is -200~650. It is mainly used for high-temperature insulation in industries such as petrochemical industry, thermal pipeline network, and thermal power plants. It has extremely low thermal conductivity, low thickness, low energy consumption, good pressure resistance and resilience, and is environmentally friendly and reusable.

1. Wider and higher operating temperature range -200°C~+650C, excellent performance in extreme hot and humid environments up to 650C.
2. Energy saving and high efficiency. The thermal conductivity is extremely low, and the thermal insulation effect is 2 to 5 times that of traditional thermal insulation materials. The thermal conductivity can reach below 0.012W/m.k.
3. Wider space utilization, same thermal insulation effect, reduced thickness, saving about half of the space.
4. Hydrophobic and breathable with a lifespan of 20 years, helping to keep equipment dry longer and prevent corrosion.
5. Safe, green and environmentally friendly, inorganic grade A non-flammable.
6. Easy to install, flexible, strong rebound rate, easy to cut and disassemble, saving more than 30% of installation time.

Aerogel Insulation Blanket







Thermal conductivity


working temperature


Compressive strength


High temperature bending temperature


 High-temperature steam pipelines in petrochemical industry, power plants, thermal power plants, thermal pipeline networks, new energy vehicles, etc.
